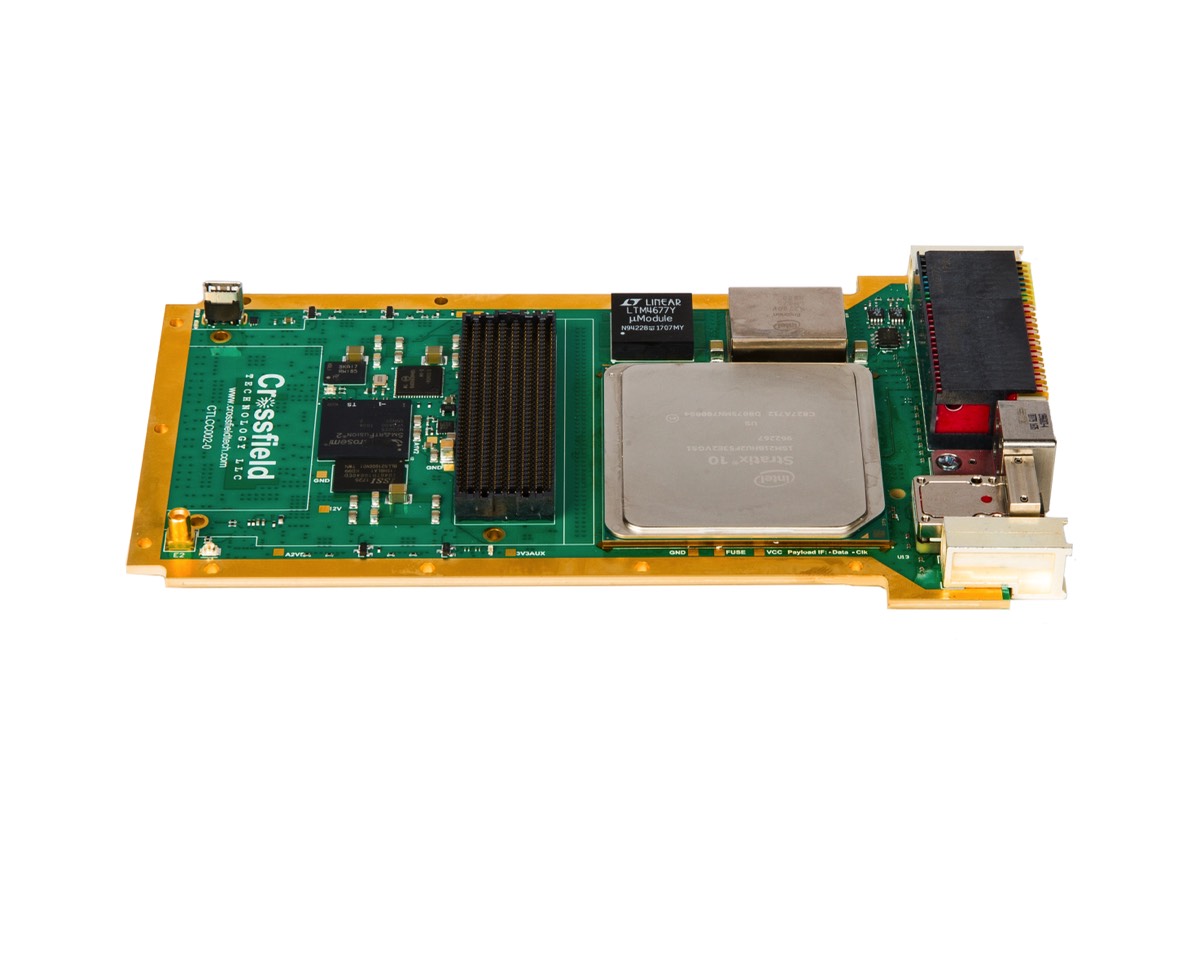

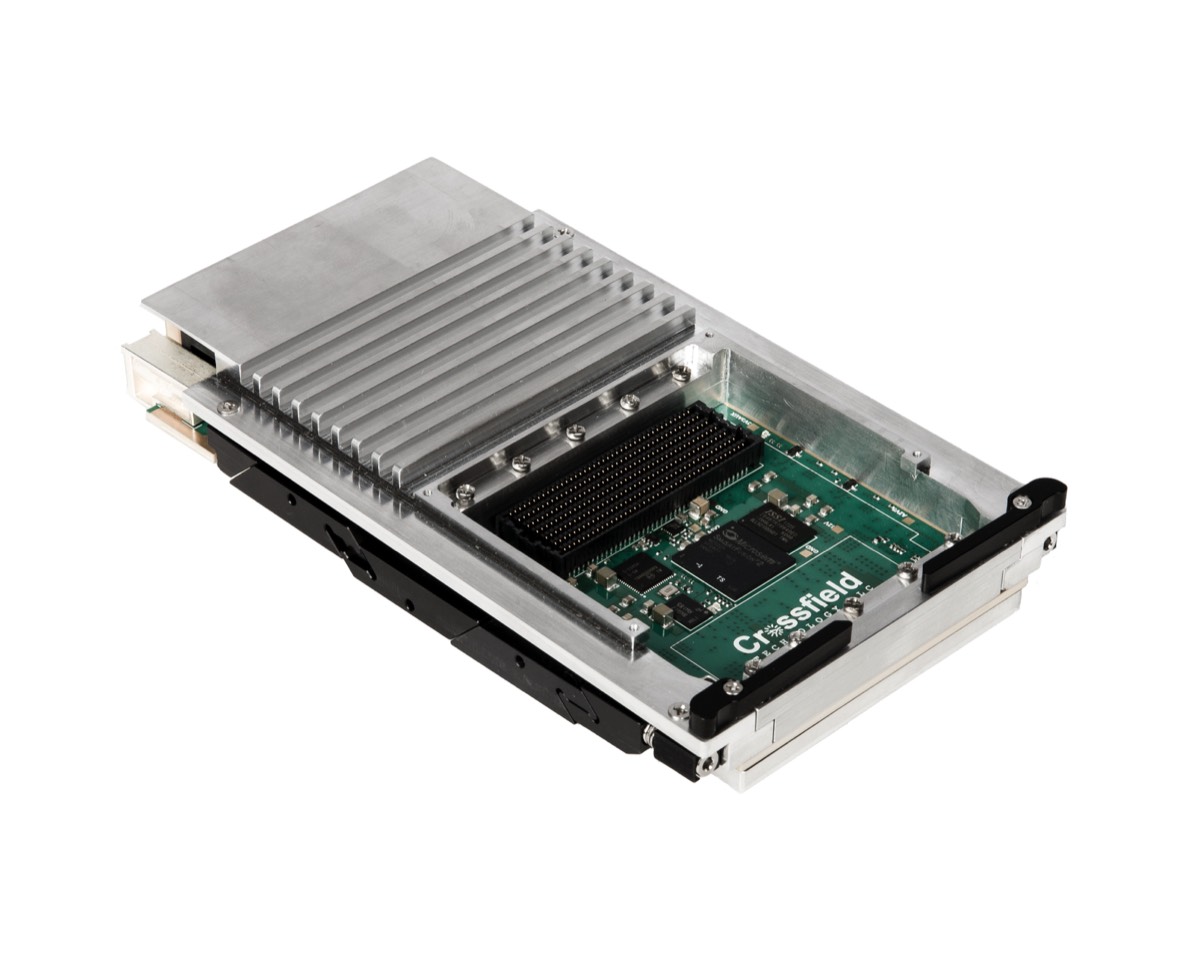

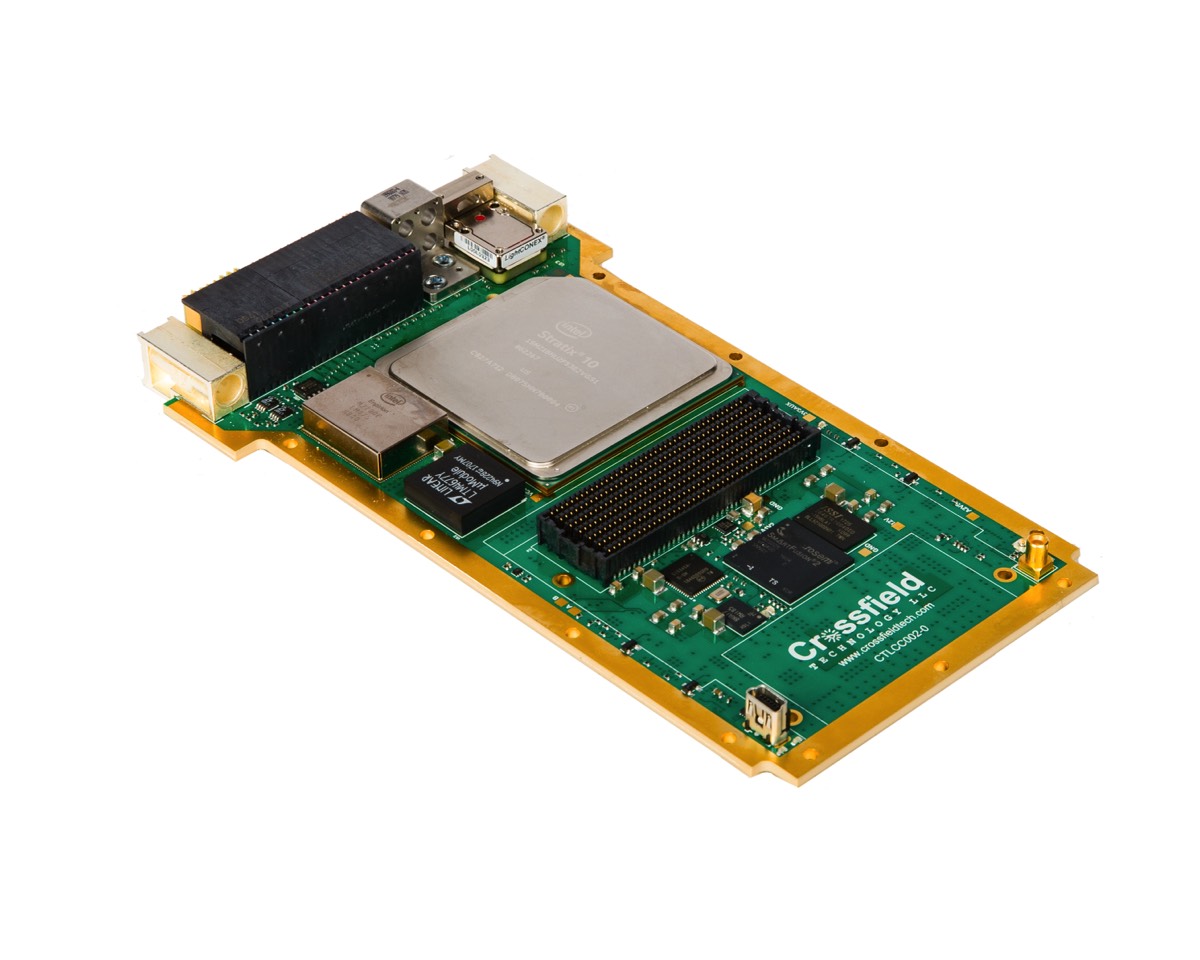

Intel's latest generation of Stratix 10 MX FPGAs support multiple teraflops (6.3 TFLOPS theoretical limit) of signal processing performance and up to 16 GB of high-bandwidth memory. Implemented in a ruggedized form factor using advance PWB technologies and implementing a FMC+ slot, the module supports a broad range of signal processing, RF payload, and processing accelerator applications. ISR, SIGINT, ELINT, and SDR applications can be quickly developed, optimized, deployed and updated using state-of-the-art methodologies and tools, including MATLAB/Simulink and Intel's DSP Builder and Quartus Prime Pro.
Crossfield® Technology's latest 3U VPX Instrumentation Gateway is designed toward Hardware Open System Technology (HOST) and Sensor Open Systems Architecture (SOSA) specifications. The feature-rich platform supports 100G-KR4 Data Plane, as well as 100G-SR4 optical Ethernet and up to 8 lanes of PCIe Gen 4 on the Expansion Plane.

Features

Stratix 10 MX 2100 FPGA
Up to 16 GB High-Bandwidth Memory (HBM3)
100G-KR4 Ethernet Data Plane
8 lanes PCIe Gen 4 Expansion Plane
P2A VITA 67.1 Analog/RF Connector
P2B VITA 66.5 Optical Engine
  • 100G-SR4 Ethernet
VITA 46.11- Compliant Crossfield IPMC on SmartFusion2 SoC FPGA
Conduction-cooled or Air-cooled

Specifications

Stratix 10 MX 2100 FPGA
  • 16 GB HBM3
  • 2.1M Logic Elements
  • 3,960 variable precision DSP blocks
  • 134Mb in 11,721 M20K blocks
  • 11Mb in MLAB
3U VPX (VITA 46/48.1/48.2)
P0 Management Plane
  • IPMB-0 (Intelligent Platform Management Bus) with connection to onboard HOST IPMC
  • Configuration and control of SSDs
Expansion Plane
  • PCI Express Gen 4 configurable as 1x8 or 2x4
P2A Analog/RF (VITA 67.1)
  • NanoRF
P2B Optical Engine (VITA 66.5)
  • TE ParaByte Fiber Optic Transceiver
Compatible with OpenVPX, HOST, SOSA, and CMOSS Slot Profiles
  • SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-n

Ordering Information

Part # CTLCC002

SOSA-Aligned
6U VPX Stratix 10 SX FPGA SoC IG

Stratix 10 SX Intel FPGA SoC VPX Plug-in Card
Stratix 10 SX Intel FPGA SoC VPX Plug-in Card
Stratix 10 SX Intel FPGA SoC VPX Plug-in Card

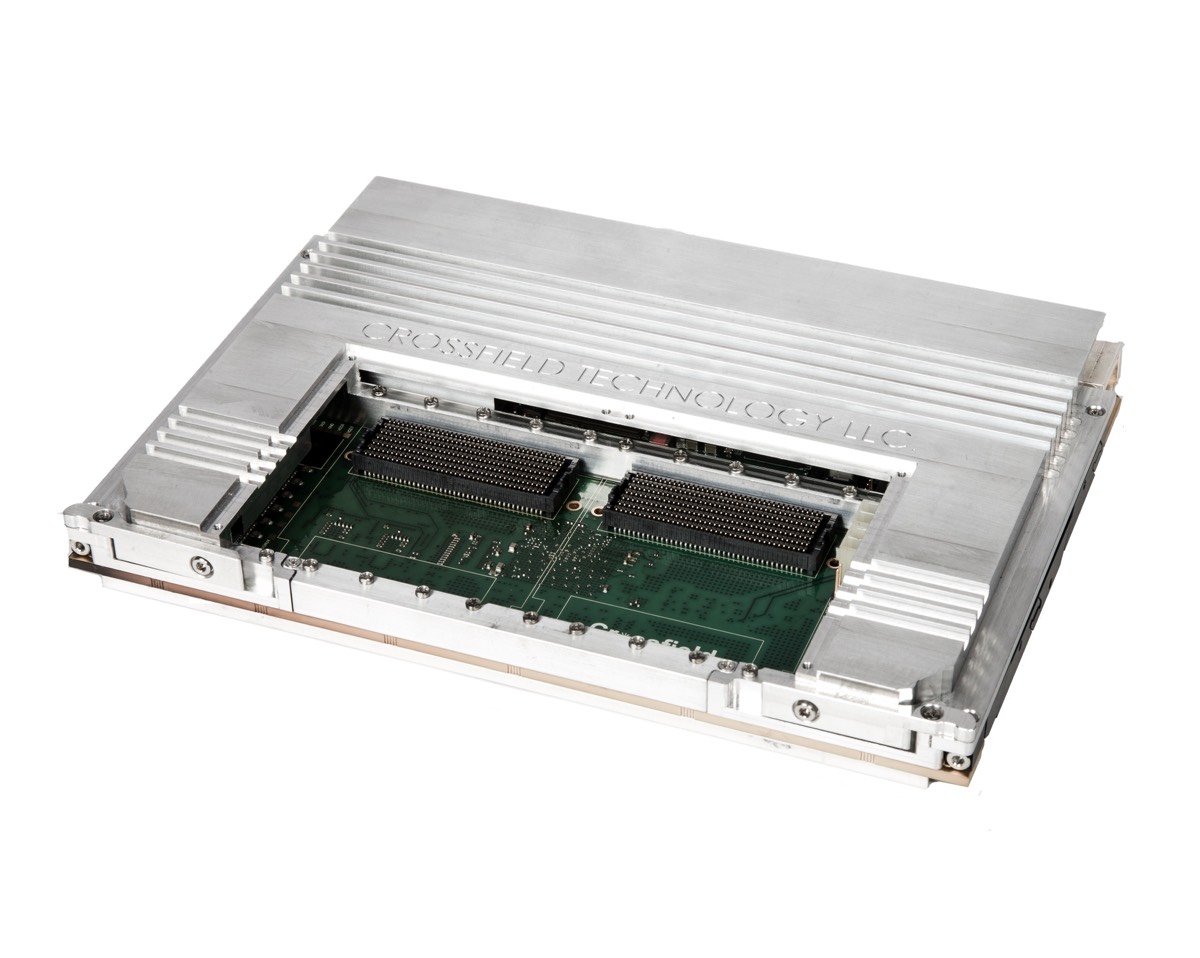

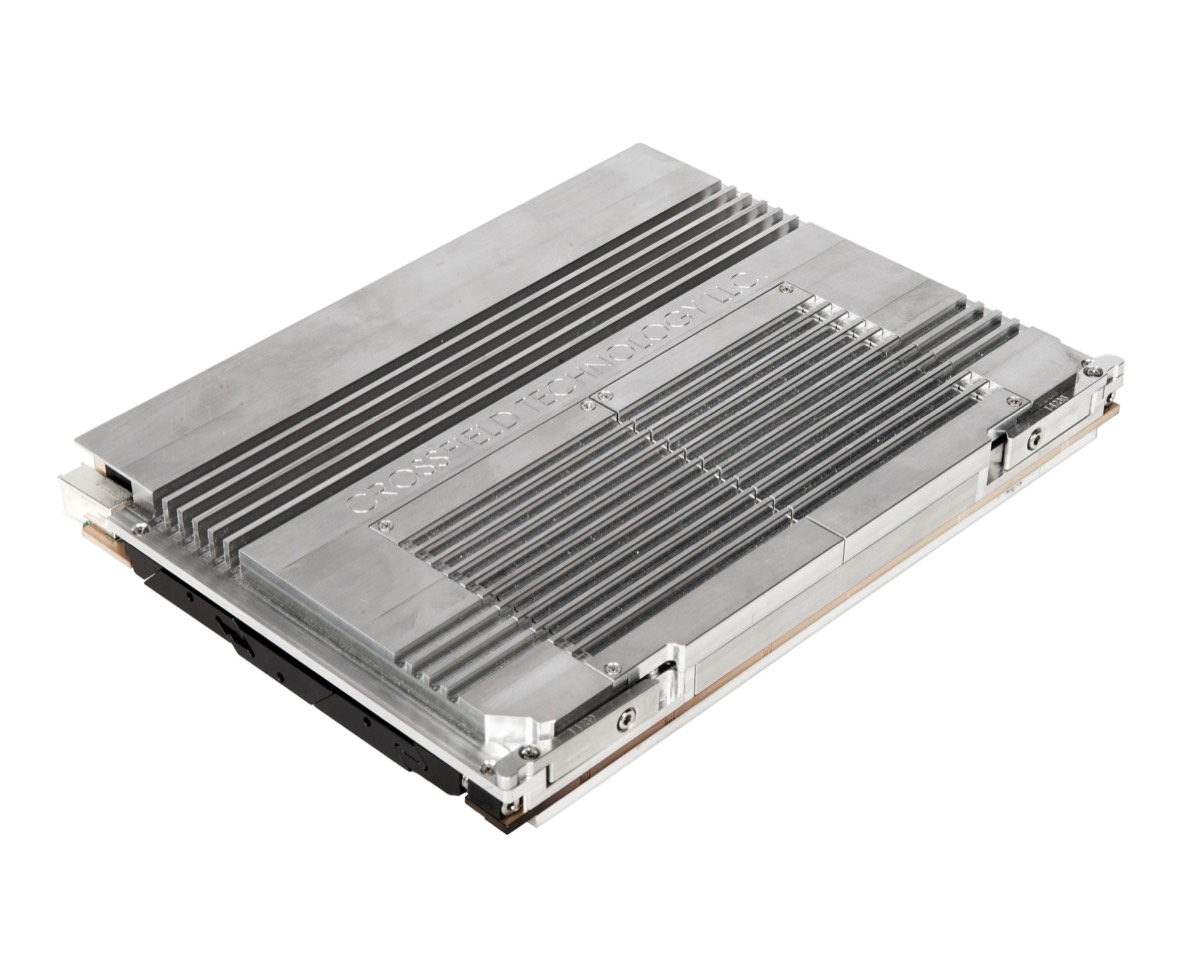

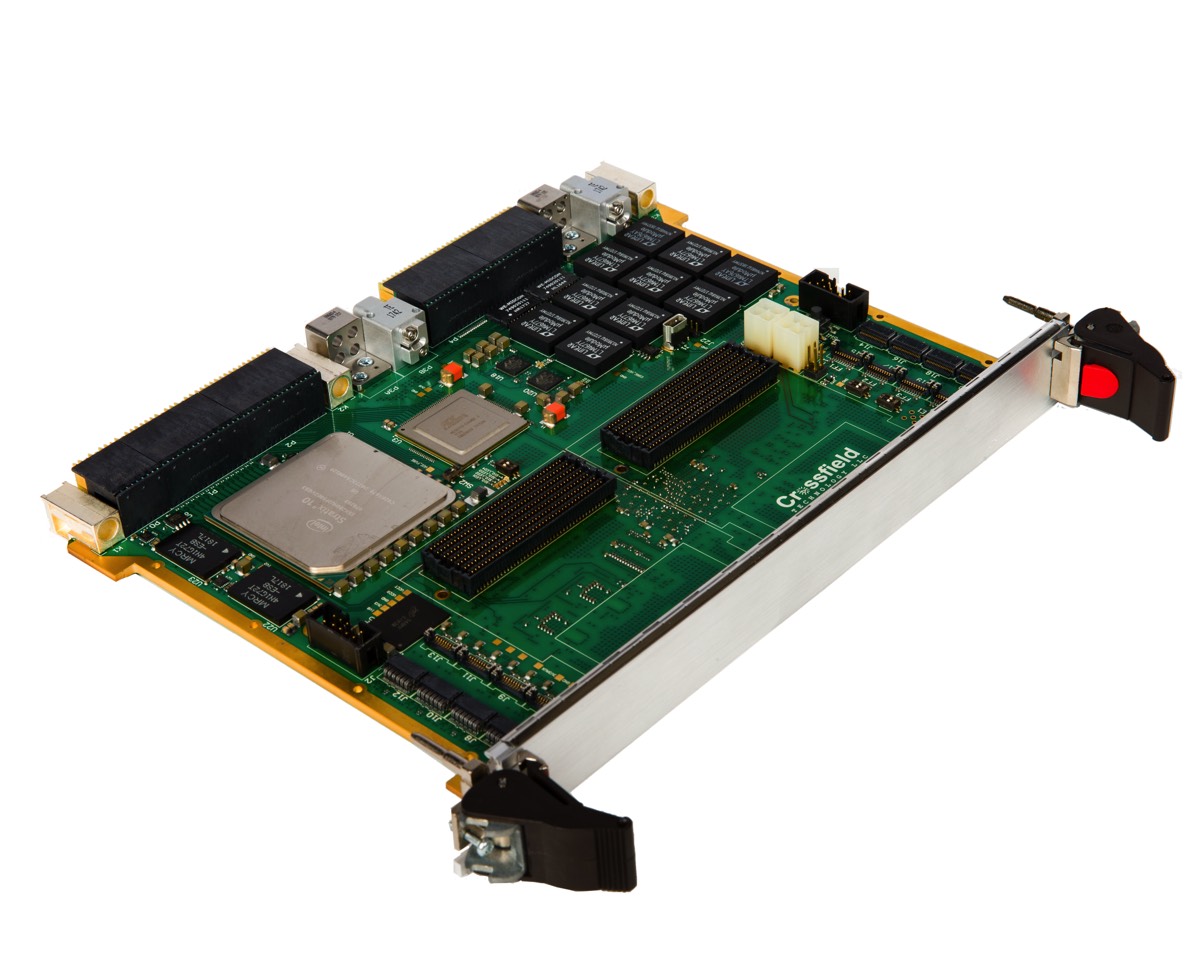

Intel's latest generation of SoC FPGAs can support multiple teraflops (9.2 TFLOPS theoretical limit) of signal processing performance while simultaneously running standard operation systems on multi-core embedded processors. Implemented in a ruggedized form factor with dual FMC+ slots, the module supports a broad range of signal processing, RF payload, and processing accelerator applications. ISR, SIGINT, ELINT, and SDR applications can be quickly developed, optimized, deployed and updated using state-of-the-art methodologies and tools, including MATLAB/Simulink and Intel's DSP Builder and Quartus Prime Pro.
Crossfield® Technology's latest 6U VPX Instrumentation Gateway is designed toward Hardware Open System Technology (HOST) and Sensor Open Systems Architecture (SOSA) specifications. The feature-rich platform supports quad 40G-KR4, SRIO or PICe Data Plane, as well as 400 Gbps optical Ethernet and 128 Gbps PCIe on the electrical and optical Expansion Planes.

Features

Stratix 10 SX 2800 FPGA SoC
8 GB FPGA DDR4 SDRAM
8 GB HPS DDR4 SDRAM
16 lanes Ethernet, SRIO or PCIe Data Plane
16 lanes PCIe Gen 3 Expansion Plane
Reconfigurable P3/P6 Connectors
  • VITA 67.1 Analog/RF
  • VITA 66.4 Optical
Optical Connectivity
  • Quad 100G-SR4 OM3
  • PCIe Gen 3 1x16, 2x8, 4x4
VITA 46.11- Compliant Crossfield IPMC on SmartFusion2 SoC FPGA
Conduction-cooled or Air-cooled

Specifications

Stratix 10 SX 2800 FPGA SoC
  • Quad-core ARM Cortex-A53
  • 2.8M Logic Elements
  • 5.760 variable precision DSP blocks
  • 229Mb in 11,721 M20K blocks
  • 15Mb in MLAB
P0 Management Plane
  • IPMB-0 (Intelligent Platform Management Bus) with connection to onboard HOST IPMC
P1 Data Plane
  • 40G-KR4
  • PCie Gen 3
  • SRIO
P2 Expansion Plane
  • PCI Express Gen 3 configurable as 1x8 or 2x4
Compatible with OpenVPX, HOST, SOSA, and CMOSS Slot Profiles

Ordering Information

Part # CTLCC001

Optical FPGA Mezzanine Card

Optical FMC
Optical FMC

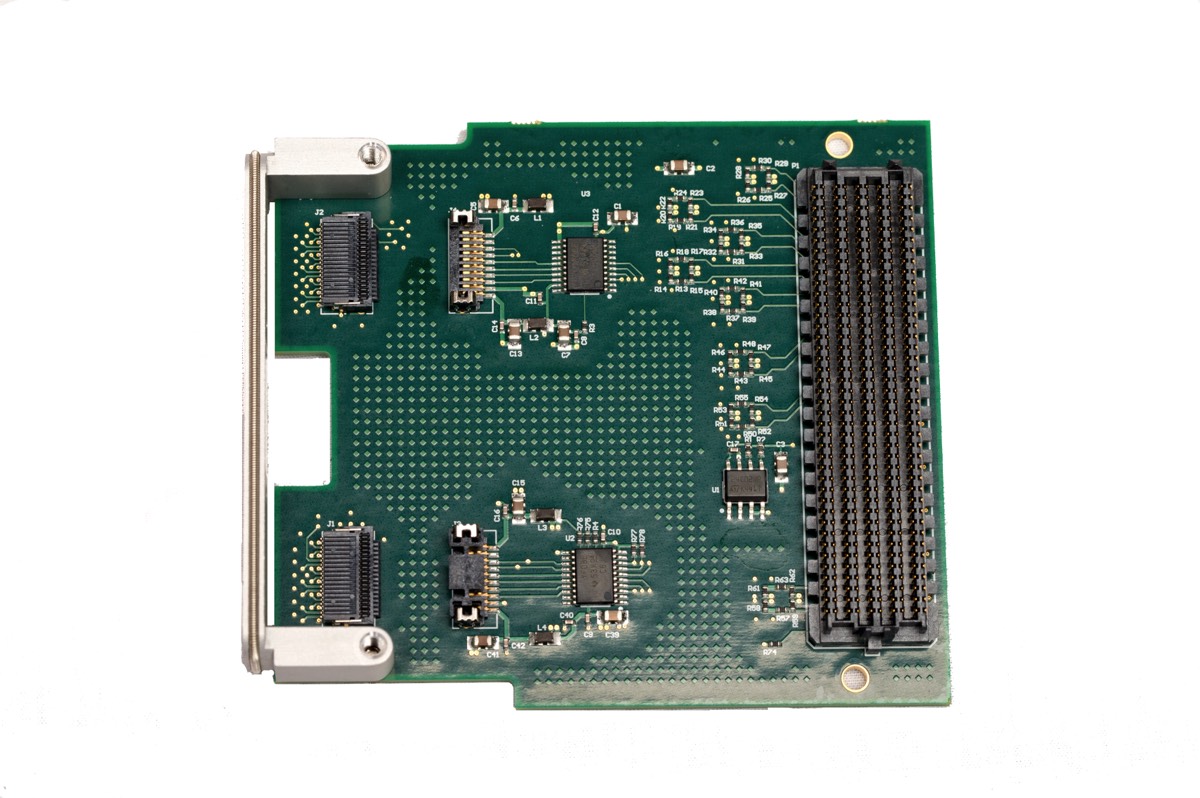

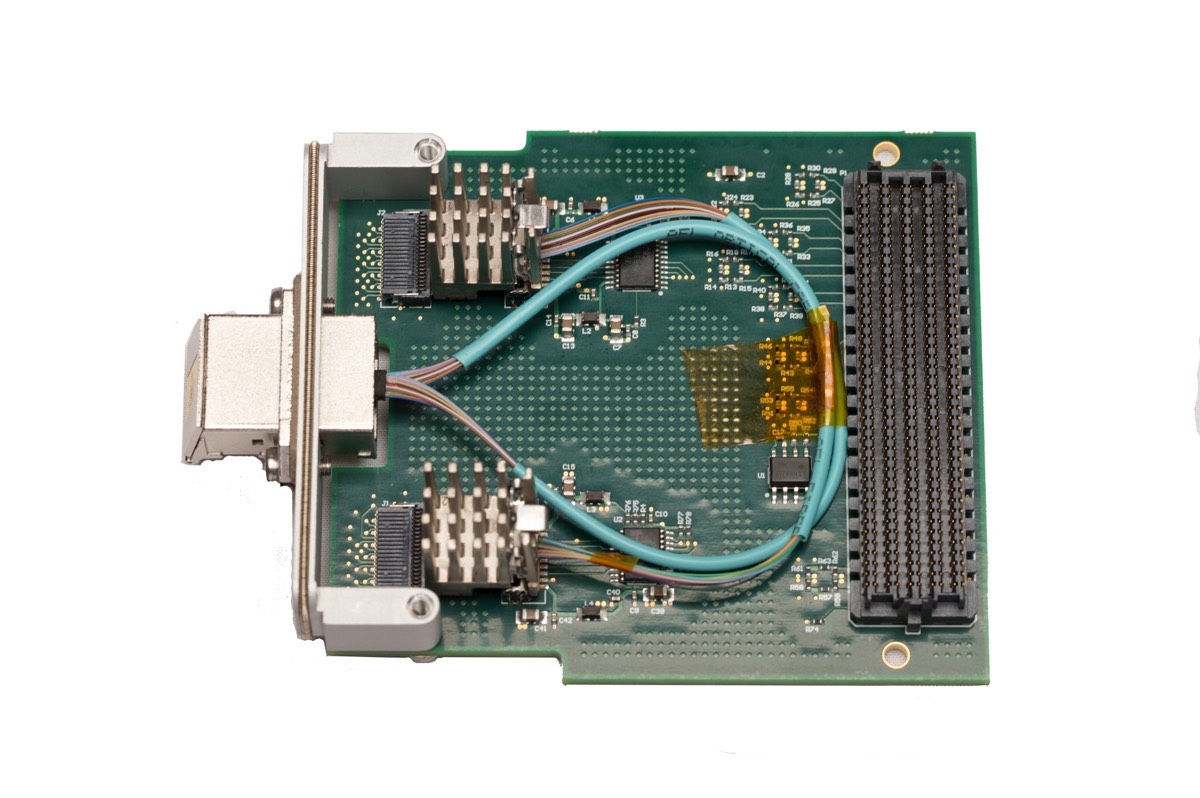

The Optical PCI Express Card provides 16 lanes of PCI Express Gen 3 over multi-mode fiber optic cables. The card can be configured for one 16-lane optical link or two 8-lane optical links.

Please visit the product page on the Samtec website!
